I just installed one of these ABWs on my own aircraft in about an hour and I have wrote detailed instructions for installing these if you are installing it yourself. I have also included instructions in case you wish to add a supplemental weight to this weight.
10# ABW (Aft Ballast Weight)
Private message me: I may have one ready to ship out or you can place an order and I will make you one.

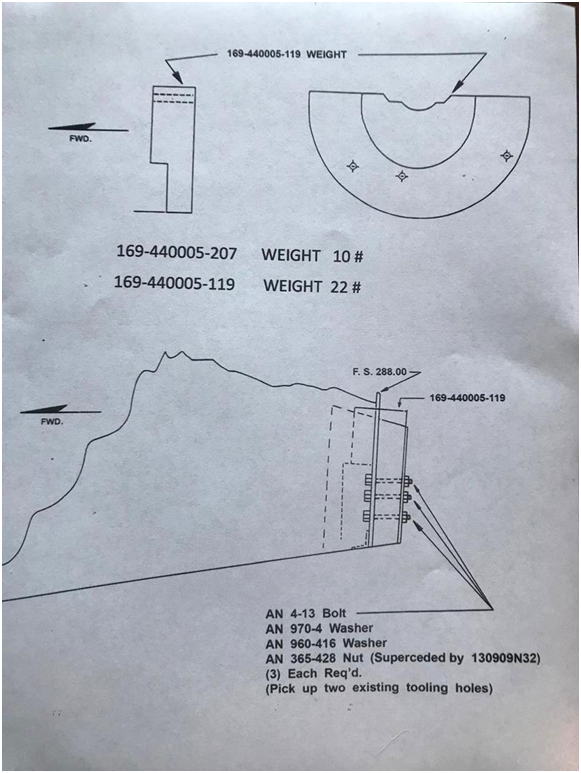

These were made from a mold of an original Beech 10# ABW P/N: 169-440005-207. If this part number fits your aircraft this OPP part should fit nicely. This part will provide a similar change in your EWCG compared to using P/N 169-440005-207 if you can locate one.
I am not an A&P and this is not a certified part, but it is my understanding that these components can be an owner prepared part. The actual weight of each unit may vary a little; the actual weight of ABW plus hardware installed at station 288, should be used to calculate the new EWCG.
Complete set of the same AN hardware used on P/N: 169-440005-207- included in price
Priority shipping and insurance ($275 value)- (signature required) included in price
ABW Placard - included in price

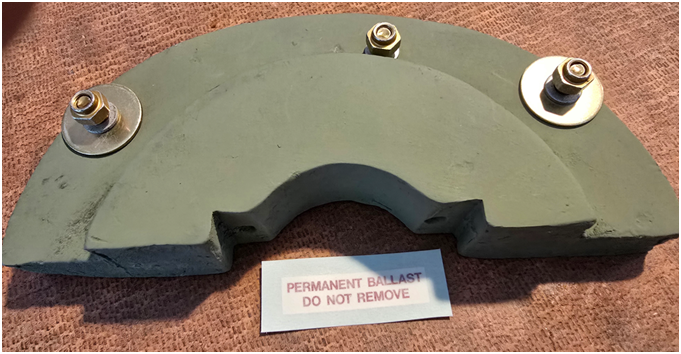

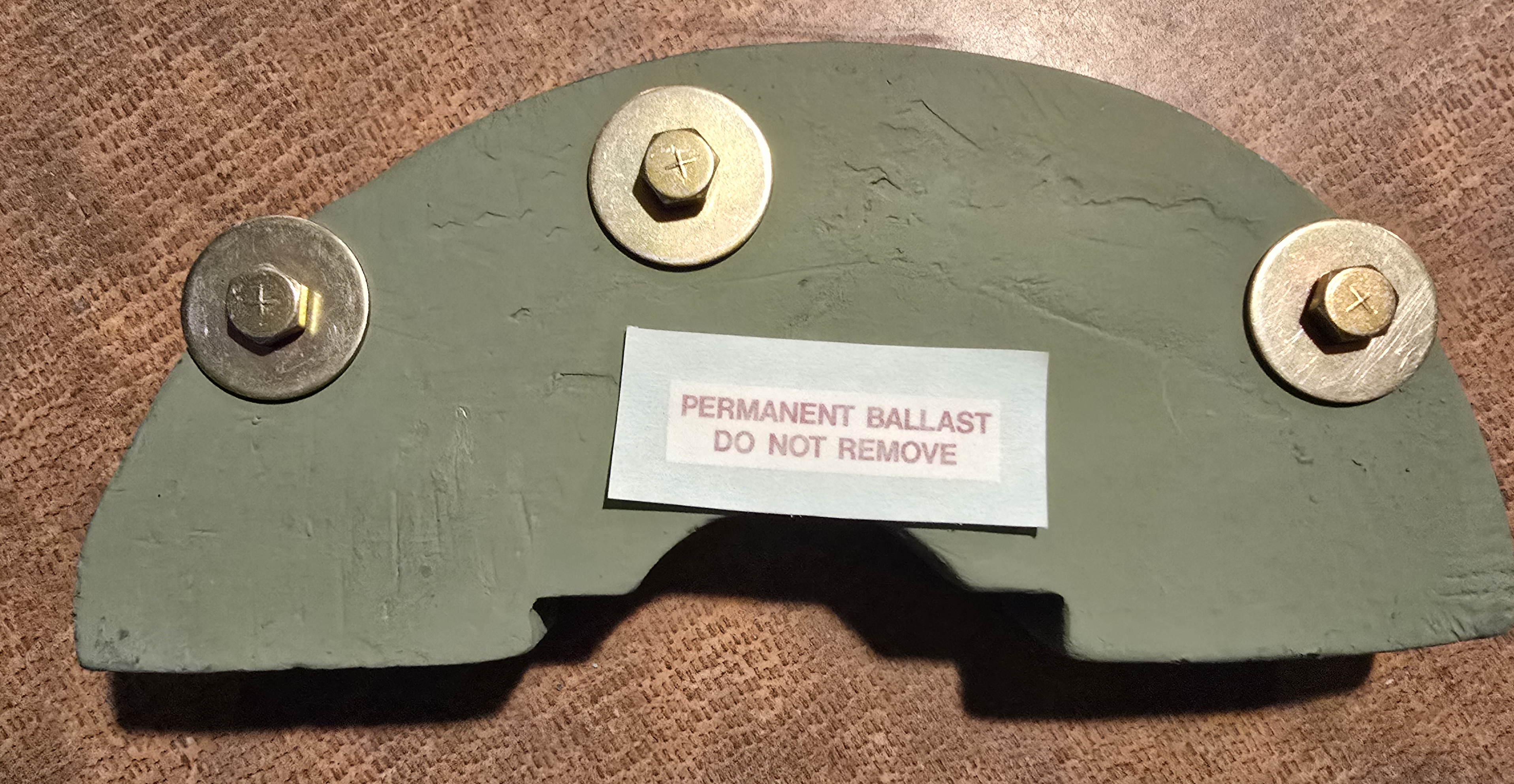

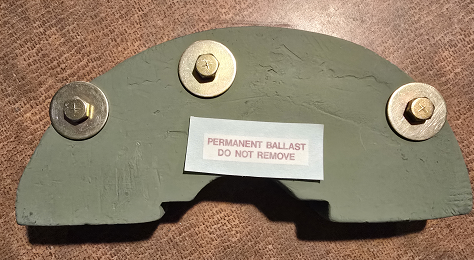

Each unit is shaved and leveled off, for a good fit and then sprayed with Zinc Chromate Primer and top coated with a flat Army Green finish.
Total for everything included is $275
ABW (only) $225 with Priority shipping & $100 insurance, but no hardware, and no placard

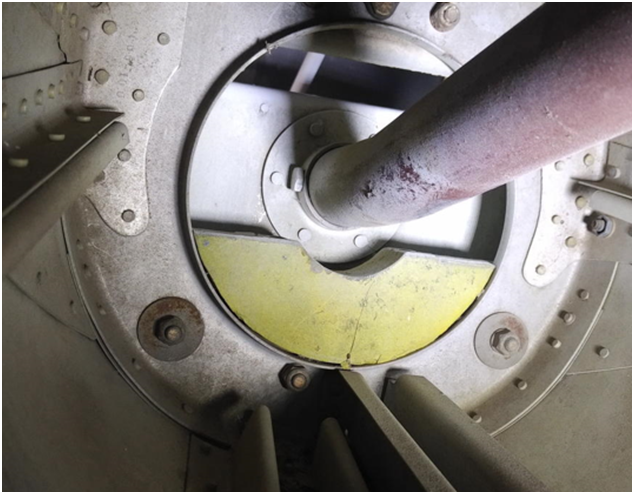

Similar ABW installed at station 288
